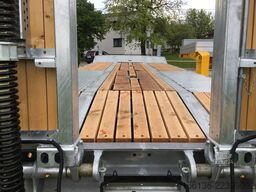

Fliegl Tiefladeanhänger DTS 300 Parabel/FH 6,5m

Tailor-made transport solution
Configure your Fliegl vehicle to your requirements. The vehicle shown is an example. Production and specification are customised to customer requirements.
#Low Loader Drawbar Trailer Chassis
Welded steel construction
Turntable with heavy-duty ball race
Folding rear support legs
Wheel chocks with holders
Aluminium side underrun protection
Full-width rear mudflap
Half-shell mudguards on 1st axle with anti-spray mudflaps
Anti-spray mudflaps behind 2nd and 3rd axles
1 lockable plastic toolbox with shelf, W 600/H 425/D 460 mm
Extendable outriggers to 3,000 mm
Central storage compartment for timber planks
70 mm timber planks for 3,000 mm extension
#Lashing Points Low Loader
1 pair of recessed 10 t lashing cut-outs in front gooseneck side members
5 pairs of 5 t lashing holes in gooseneck outer frame
7 pairs of recessed 10 t mushroom lashing points in top and side outer frame
1 on gooseneck
6 in low bed
First lashing point 250 mm from front, last max. 250 mm from rear
5 pairs of recessed stake pockets in outer frame, internal size 70 x 40 mm (convertible to 5 t ring lashing eyes)
2 pairs of additional 10 t folding lashing rings
1 on gooseneck
1 recessed in floor behind last axle
#Drawbar Equipment
Drawbar with certified 40 mm towing eye
#Axles + Suspension
Drum brake axles, manufacturer's choice
"Achsen-/Fahrwerk laservermessen" reduces tyre wear and fuel consumption
Parabolic suspension with maintenance-free steel-rubber bushes and mechanical axle load equaliser
#Wheels and Tyres
235/75 R 17.5 steel wheels, twin fitment, factory silver
"RDKS" tyre pressure monitoring system to ECE R 141, display in towing vehicle via EBS
#Braking System
Twin-line air brake system
Spring parking brake
2 non-interchangeable front coupling heads with connecting lines to towing vehicle
24 V EBS electronic braking system with front EBS plug
#Electrical System
24 V multi-chamber lights with yellow side LED lights
Flashing side LED lights linked to indicators
2 front white position lights
2 rear white/red outline marker lights
2 x 7-pin non-interchangeable front plugs
1 LED beacon with bracket
2 pairs of illuminated LED warning boards, extendable to 3,000 mm
#Floor
Front gooseneck with steel chequer plate
Recessed storage box in transition to gooseneck
Then 70 mm softwood floor, steel chequer plate in wheel arch area
Rear bevel with 70 mm softwood floor
Low loader deck incl. rear bevel: 6,500 mm
#Loading Ramps
Steel ramps approx. 3,000 mm long, 750 mm wide, laterally adjustable
Additional folding lower ramp lock
Timber-covered
Lajdoznwdyopfx Aa Eed
Spring-assisted lifting
#Operating Instructions
At 10,000 kg axle load, a special permit is required; only indivisible loads permitted!
#Registration / Plates
Registration country: Germany
24/7 service hotline
Reflective contour markings to ECE R 048, white sides, red rear
Warning plate to ECE 70
#Paint Finish
Chassis hot-dip galvanised incl. passivation
"15 Jahre Gewährleistung gegen Durchrostung"
Loading ramps hot-dip galvanised
